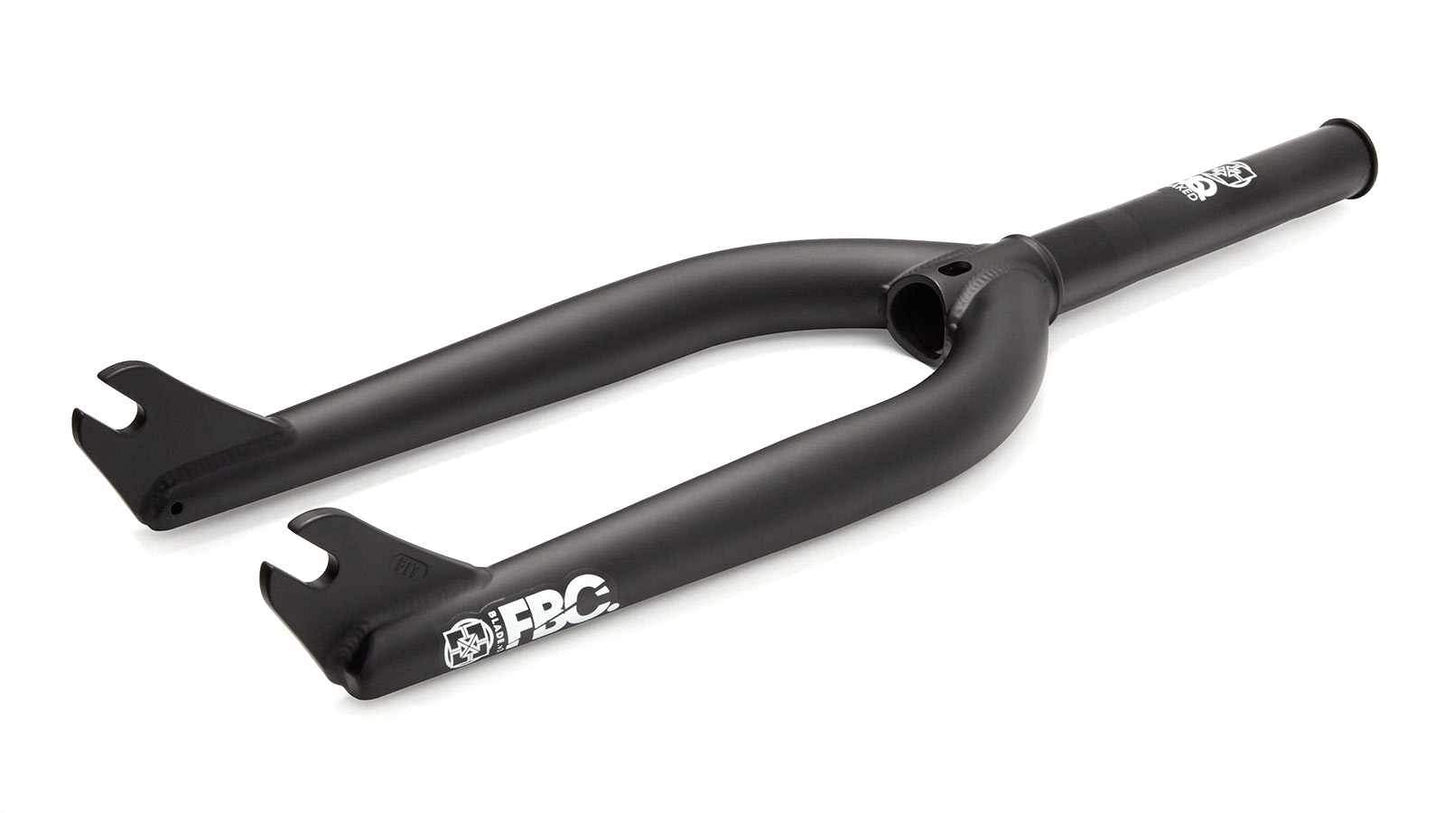

Fitbikeco. Blade V3 Fork - 20" BMX Fork

Product Code: 30218

  • Sale
  • £99.99
  • Regular price £149.99
Tax included. Shipping calculated at checkout.

Our goal was to design and produce an extremely strong fork with plenty of tire clearance. After 2 years of R&D and a lot of investment in tooling, the Blade V.3 is available with a traditional 33mm offset. Here are a few features that make these forks so strong.

Using left and right specific investment cast drop-outs instead of traditional Cr-Mo plate, weve eliminated the weld gap on the inside of the drops, and were able to thicken up the drops toward the top making a much stronger drop-out/leg connection.
Seamless, swaged legs provide more strength than welded or fused caps-especially if pegs are installed. The ends of these legs are formed, not capped and welded so there is nothing to fracture.
A longer 166mm CNCd steerer tube with increased wall thicknesses wherever possible and a 24mm x 1.5 compression cap with integrated race.
Tapered and butted legs provide tons of strength, crown weld surface, and peg clearance.
Post weld 4Q Baked heat-treatment


  • Legs - Seamless Swaged (No Welded Cap)
  • Dropouts - Investment Cast
  • Steerer Tube - 1 Piece CNC-Machined 4130 CrMo
  • Steerer Tube Length - 166mm
  • Compression - M24 X 1.5 Thread 6mm Allen Slot
  • Axle to Crown - 320mm
  • Offset - 33mm
  • Weight - 2.25 lb (1.02 kg)
  • Heat Treat - 4Q Baked Post-Weld
